OFFSET PIVOT HINGES
by RAJACK
T5 x D4 Top of Door Setup
T5 above the door flush into header.
Install Option A
T5
D4
v1
v1-1
v1-2
T5 flush with the top of the door
v2
Install Option B
T5
D4
v2-1
v2-2
v2-3
X
This page contains illustrations and general placement instructions for the T5 x D4 offset pivot hinge for the top of your door. Once RAJACK has all of your specific door information we can recommend hinge material sizes and projections. Please use the links above for detailed cut sheets of each material size offered for this hinge setup. RAJACK can accommodate most custom hinge requests.

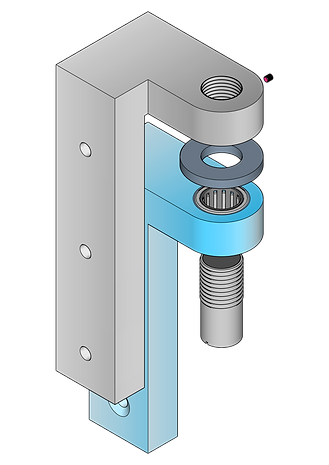

The T5 pivot portion is a side jamb mounted offset pivot hinge. The T5 can be mortised so that the knuckle of the hinge is above the door flush into the header.
( see v1, v1-1, v1-2). Labeled: Install Option A
The T5 can also be mortised so that the T5 body is flush with the top of the door (see v2). Some special notes below when choosing to mortise the T5 flush with the top of the door (see v2-1, v2-2, v2-3). Labeled: Install Option B
The D4 pivot portion is mortised flush into the side of the door. Depending on how the T5 is installed will determine how deep the D4 is mortised down into the door. The D4 is centered into the doors thickness. Changes can be made to the size, projection and placement of the pivot hinge if need be at time of order.
RAJACK Offset Pivot Hinges are manufactured in different material sizes to accommodate small cabinet doors up to full size doors. You can find a hinge material size chart on the Offset Pivot Hinge main page.
If you have any additional questions or would like a formal quote for your project please email info@rajack.com.
